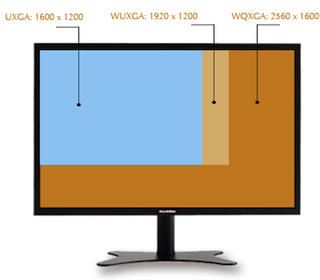

The Hazro HZ30Wie/f 30" WQHD IPS LCD displays are ideal for graphics and visual media, where professional grade technology meets revolutionary design. The massive 4MP (2560x1600) WQXGA resolution brings a new dimension to on-screen graphics. For the performance-driven individual, the Hazro HZ30Wi e/f provides the ideal navigation perspective for your desktop in the home or office environment.
|View Additional Images|
S-IPS display technology delivers unsurpassed levels of colour saturation. It results in image clarity that allows for colours to be easily differentiated to bring unheard of precision and accuracy in visual reproduction. The 30" HZ30Wi e/f features a colour gamut of 112% NTSC which covers the complete AdobeRGB spectrum and encompasses the sRGB workspace entirely. When applied in colour critical applications the result is clear brilliance.
Wherever you need it most, the Hazro HZ30Wi e/f performs with consistency and clarity to optimise your visual experience. The Hazro HZ30Wi e/f recognises groundbreaking technology without compromising efficiency, whilst tailoring to the needs of the discerning, professional, user. The masterful design outside augments the genius within, with the Hazro HZ30Wi e/f collating top industry-spec innovation with rock-solid dependability to perform when you need it most, time and time again.

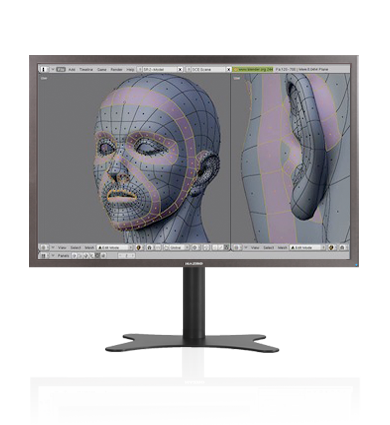

With the Hazro HZ30Wi e/f, you can view perfectly rendered images without compromising on the space you need to take your creation from conception to fruition. View an uncompromisingly crisp, and sharp, output that won't strain your eyes in a resolution and pixel pitch that'll inject life into your work with piercing detail.
The Hazro HZ30Wi e/f offers three times the workspace of a standard 19” monitor and 77% more workspace than a 24" [16:9] display - allowing creative freedom and practicality. With quicker access to colour tools, palettes and document windows, the HZ30Wi e/f is proven to increase efficiency and output. Anyone can see the tangible results of being able to view two application windows side-by-side. Whether it's to look at a website and its code simultaneously, or if it's to streamline data-entry processes, the final result will still be improved efficiency – and, in the case of businesses, an impact on their bottom line.
The HZ30Wi e/f boasts a response time of 6ms which ensures rapid interchange between colours as you demand without streaking or ghosting - for seamless visual media performance. A superior resolution and enlarged workspace combine to create the ultimate work environment.
The 1000:1 contrast ratio gives you deeper shades of black and brighter whites and the rapid 8ms response time minimises streaking & ghosting. A higher contrast ratio allows for easier distinction of all those subtle shades rather than 'overlapping' colors. Black tones seem richer, deeper and darker with white shades appearing vivid and vibrant.
The HZ30Wi e/f is built around a IPS panel which is ideal for use in collaborative environments. Glare and distortion is minimised and colors don't seem faded or washed out even at extreme angles of upto 178 degrees making the HZ30Wi e/f the ideal for use as a ‘group viewing’ platform.
• Can be modified as a panel, rackmount or open-frame display enabling OEMs, System Integrators and VARs to sell directly into the industrial, military and multimedia markets
• Optional DICOM sensor for conformance and auto ambient light adjustment
• Available as a standalone WQXGA display [single resolution] or with scaling functionality to accommodate for dual 2MP viewing mode setup [i.e. two independently fed DVI sources side-by-side]
• Twin industrial grade low-noise cooling fans : ideal for use in enclosed environments where convective cooling is not sufficient [Fan specs: MTBF 100k hours. Max 38dB]
• Side mounted OSD Buttons [On-Screen-Display] available in 2 forms: PCB [buttons] or membrane keypad
• Private Labelling Available
• Sold with RTB, On-Site or Swap-out warranties. Self-service also available with guided repair instructions to minimise downtime in the event of failure
• Low Power Operation: Can be ordered with integrated 180W Internal Power Supply [SMPS] or external +24 DC Adapter
|Download HZ30Wi e/f Instruction Manual|
|LCD Panel||30” WQXGA colour LCD S-IPS active matrix|
|Type||16:10 aspect Ultra wide gamut TFT-LCD|
|Bit Depth||HZ30Wie: 10bit 1.07billion Colors | HZ30Wif: 8bit 16.7million Colors|
|Viewing area||641.28 mm (H) x 400.8 mm (V)|
|Resolution||2560 [H] x 1600 [V]|
|Pixel Pitch||0.2505mm x 0.2505mm|
|Contrast Ratio||1000 : 1(Typ.)|
|Refresh rate||59 ~ 60 Hz|
|Response Time||6ms [grey-to-grey]|
|Color Gamut||Wide Gamut 117% (CIE 1976) NTSC [100% AdobeRGB and sRGB Coverage]|
|Brightness||370 cd /m² (Center 1 Point)|
|Viewing Angle||R/L : 89°/ 89°U/D : 89°/ 89°|
|Surface Treatment||Hard coating(3H), Anti-glare treatment of the front polariser|
|Plug n Play Compatibility||Windows 98/ME/2000/XP/Vista/Win7/MAC OS X|
|OSD Menu Control||BRIGHTNESS UP/DOWN, POWER|
|Operating Temperature||0 ~ 35 °C|
|Storage Temperature||-5 ~ 50 °C|
|Operating Humidity||10 ~ 90 % RH|
|Storage Humidity||40 ~ 70 % RH|
|VESA Hole Configuration||VESA 100x100 & 200x100|
|Dimensions||Approx: 690(L) x 445(W) x 65mm(D) (excluding stand)|
|Weight||Approx 11 kg before packaging and excluding stand [approx]|
|Power, Inputs and Accessories|
|Power Consumption||In Operation: <150W|
|DPMS / OFF: <2W|
|Energy Saving Mode||VESA DPMS [Display Power Management Signaling]|
|Power Input/Output||DC Input: AC 100V-240V, 50~60Hz|
|DC Output: DC 24V / 6.3A [approx]|
|Inputs||24V DC Jack, 1 x Dual Link DVI-D;|
|Accessories||1 x Dual Link DVI-D Cable; 1 x IEC 3 Pin AC Power Cable;
1 x DC Power Adapter; Instruction Manual
